60 inch home entertainment center Konka M60U Reviews

IT168 evaluation smart TV is now quite popular, users can get more rich video resources through smart TV, get rid of the traditional TV program resources a single situation. On the other hand, users are increasingly demanding the size and resolution of flat-panel televisions. After solving video resources, users have begun to pursue the quality of television. Smart TVs with 4K resolution and more than 60 inches have become popular TV products today. Konka recently introduced a 60-inch 4K resolution TV--M60U. This TV was born for motion picture and it is mainly for excellent display quality.

Konka M60U smart TV evaluation

The Konka M60U is a large-size smart TV with 4K resolution and multiple image quality optimization technologies. It is also equipped with a powerful processor and is pre-installed with a deeply customized Android 5.1 system, bringing with it a wealth of video resources and educational resources. Currently, Konka M60U has officially listed.

Configuration information

Through the above table you can see the Konka M60U's hardware configuration is still quite good. Konka M60U screen is LG original IPS hard screen, configured for dual 64-bit 17 core, including CPU quad-core + CPU quad-core + NEON quad-core + MPU single-core + VPU dual-core chip + SPU dual-core, the system is using Konka exclusive easy Pomelo 5.2, supports wireless WIFI Internet access, Bluetooth 4.0, H.265 decoding. Konka M60U has full MEMC motion image detection technology, which effectively solves the problem of jitter and smearing of moving pictures. It also matches with 4K HDR+4K true color wheel, which greatly enhances TV picture quality reduction.

Konka M60U picture quality

The Konka M60U is a TV with a dominant picture quality. It has a full MEMC motion picture detection technology and a 4K true color wheel 4K HDR true color engine. On the one hand, it can effectively solve the problem of jitter and smearing of moving pictures. On the other hand, it can have Increase the degree of television picture reproduction. Konka M60U uses LGD's IPS screen, screen resolution 3840x2160, the standard 4K resolution, is 4 times the 1080P resolution.

Konka M60U screen is LG original IPS hard screen, providing the basic security for the picture quality of TV. Konka M60U supports 4K HDR display technology, providing more dynamic range and image details.

Theory test:

Konka M60U color gamut

We tested the Konka M60U using the Starscream colorimeter. Konka M60U does not support wide color, through the test we can see Konka M60U color gamut can already reach 94% sRGB or 71% AdobeRGB color gamut, color gamut performance can meet the needs of daily use, can have better color performance .

Konka M60U screen uniformity

Screen uniformity can be seen in the four corners of the Konka M60U brightness will appear darker relative to the center position, but the bias value is not large, belongs to the normal range, after all, the 60-inch screen size requirements are completely uniform is indeed a very difficult Things.

Konka M60U 4K picture video test

HD picture test:

Konka M60U photo real shot

Thanks to Konka's 4K HDR Plus and 4K true color wheel technology, the still picture of the Konka M60U shows a very vivid color, and has a very high definition, the details of the picture have been fully demonstrated in 4K resolution, and some dark parts are also located. The good performance is mainly due to the excellent grayscale performance of the M60U.

4K video test:

Konka M60U video real shot

4K video testing can see that the video detail performance based on 4K resolution is much more than 1080P video, and the resolution of 4K resolution is undoubted. Konka M60U can support the mainstream 4K video format, support H.264/H.265 video decoding, can play 4K video very smoothly. Since the Konka M60U uses Konka's exclusive full MEMC technology, it will not cause tailing when playing high-dynamic pictures. Under the 4K HDR Plus and 4K true color wheel technology, the Konka M60U's color has excellent performance.

4K HDR Plus and 4K true color wheel technology with LG original 4K LG Display hard screen brings amazing results. HDR Technology This is a high dynamic image quality range enhancement technology. Compared with ordinary SDR content, it achieves better coverage of color gamut and increased contrast, achieving better light and dark display effect, and appropriately lowering at too low exposure. Brightness, over dark areas to enhance the brightness, you can see the Konka M60U in the picture light control has a very good effect, greatly enhanced the details of the picture.

The Konka M60U has Konka's exclusive â€œ4K True Color Wheel Engine Technologyâ€. The 4K True Color Wheel Engine technology is a combination of red, green, blue, and white color separation filters that can separate the transmitted white light. It is rotated by a high-speed motor, and then different monochromatic lights are sequentially separated on a specified light path. Finally, a full-color image is synthesized and projected through other light engine elements. When dealing with colors, similar color balance results can be obtained in a variety of ways. 4K true color wheel engine can upgrade the Konka M60U color saturation to 12bit, so that the color performance will be more abundant, and the color of the picture and the image itself can be highly restored. At present, general television cannot achieve the 12bit display effect.

Full MEMC Technology

MEMC is motion estimation and motion compensation, motion picture quality compensation technology used in LCD TVs. The principle is to use a dynamic video system to add a frame of motion compensation between the traditional two frames of images to increase the 50/60Hz refresh rate of ordinary flat-panel TVs to 100/120Hz. The entire MEMC is Konka's exclusive technology and can perform technical processing on all sources. Whether it is online video playback, local video USB playback, or set-top box/player, MEMC motion estimation interpolation frame compensation and 120HZ frequency-multiplying driver chip processing can be implemented. 120 Hz screen display.

Konka M60U Appearance:

Konka M60U

The exterior design of the Konka M60U is rather atmospheric. It uses an ultra-narrow frame design with light champagne gold as its main color. The three-stage design dilutes the traditional â€œboxâ€ sense of TV and uses a very metallic base to make the entire TV look not only the atmosphere It is also more fashionable.

Konka M60U border

Konka M60U uses a three-part frame design, the upper and lower borders are aluminum alloy, the middle frame is a black injection molding material, the border width is only 1cm, ultra-narrow frame design plus three-stage frame, the TV frame is desalinated, and the entire television is upgraded. The value of the Yan.

Konka M60U border

The Konka M60U's frame adopts advanced technology to connect, so that the interface at the convergence of natural, in addition to the use of vacuum cutting technology, can make the screen and the frame fit more closely, effectively prevent the screen from light leakage.

Konka M60U on the back

The rear design of the Konka M60U is relatively simple. A large number of cooling holes are reserved, which can bring better cooling effect to the TV. In addition, the interface position on the back can be seen to be concentrated on the right side of the fuselage, and cables for organizing cables are provided. Belt, design is quite humane.

Konka M60U interface

Konka M60U interface and switch

Konka M60U provides a very rich interface, behind the TV provides a TV antenna, HDMI, audio output, coaxial digital, audio output, AV video input interface, and the other side provides 2 HDMI and 2 USB interfaces, one of which USB3.0 interface, can provide higher transmission speeds.

Konka M60U system

The Konka M60U uses a 17-core configuration with quad-core CPU + quad-core GPU + quad-core NEON + single-core MPU + dual-core chip VPU + dual-core SPU, where the CPU uses the core of the 64-bit A53 architecture, and 4 A53 cores provide sufficient performance, and is matched with 64 based The Android 5.0 system is deeply customized with Yi Piao 5.2, allowing better performance of the CPU.

Konka M60U main interface

The Konka M60U uses a depth-customized Yipiao 5.2 system. Yipiao 5.2 uses a 64-bit Android 5.1 system as the bottom layer development. It has a very simple interface color, which makes the operation easier. In addition, the user can not only operate through remote control, but also Remote control the TV via mobile phone APP.

Konka M60U video interface

Konka M60U easy to learn interface

Konka M60U application interface

Yipiao 5.2 system can enter the corresponding function module as long as the left and right buttons by remote control, provide a wealth of video resources, as well as easy to learn to provide educational resources, on video resources and teaching resources can be detailed in the next page. Users can install Android applications on the Konka M60U through the app store or U disk to enrich the functionality of the TV.

Konka M60U Application Management

The application for installing on the Konka M60U can be found in the application center. The Yipiao 5.2 system provides good compatibility with Android software. It can perfectly support Android applications used on most TVs, even on mobile phones. Android applications can also run perfectly on the Yipiao 5.2 system.

Konka M60U add

The application for installing on TV can add the application to the main interface through application management, or delete the application from the main interface. After the application is added to the main interface, the application can be directly operated in the main area of â€‹â€‹the TV without entering the application center. The operation has become easier.

Konka M60U local resources

Konka M60U provides two USB ports, one of which supports high-speed USB3.0 interface. Users can install U disk, mobile hard disk and other storage design through USB interface. Yipiao 5.2 page provides very simple and easy operation of file management. The user can directly open the home screen to save local resources such as deleted pictures, music, videos and so on.

Konka M60U settings

In the main interface of Konka M60U, press the remote control button to open the setting center. Here you can set the signal source, user center, information center, and settings center of the TV.

Konka M60U input

Konka M60U provides a very rich input source, in addition to the general HDMI interface, AV interface and analog TV interface, but also provides a digital TV interface, as well as a grid of features. The video carousel provides a large number of programs. Users can select different carousel channels according to their favorite content and play them continuously 24 hours a day.

Konka M60U settings interface

Konka M60U system information

Konka M60U system upgrade

Konka M60U Bluetooth

The interface design of the setup center is very simple. Users can set various settings on the TV here, including networks, systems, users, etc. The Konka M60U also provides a Bluetooth connection. The user can purchase a Bluetooth remote control and provide a richer remote control after pairing. Features. The system also provides an automatic system upgrade function that allows users to update to the latest system at any time and enjoy more updated system functions.

Konka M60U easy interactive application

In addition to the infrared remote control and Bluetooth remote control, the Konka M60U can also be remotely controlled via a mobile phone, providing an â€œeasy interactiveâ€ QR code in the setup interface, downloading an interactive application after scanning, and enabling remote control functions on mobile phones, of course, mobile phones and televisions. Must be on the same LAN.

Konka M60U easy to interact

Easy Interactive application not only provides remote control function, users can search for video resources on the mobile phone, then play it on the TV, then download the application from the easy-to-interactive application center, and then directly install it on the TV, to improve the application of the installation of the operation is simple and new, you can also achieve TV screen capture, picture sharing, video sharing and more.

Konka M60U resources

Video resources are the core of smart TVs. Of course, the Konka M60U uses rich video resources. The Konka M60U uses the ICNTV broadcast control platform. In addition to the full-network search function, it can provide more video resources. Users can even install other video on the TV. The application of the video platform further enriches the video resources on the Konka M60U.

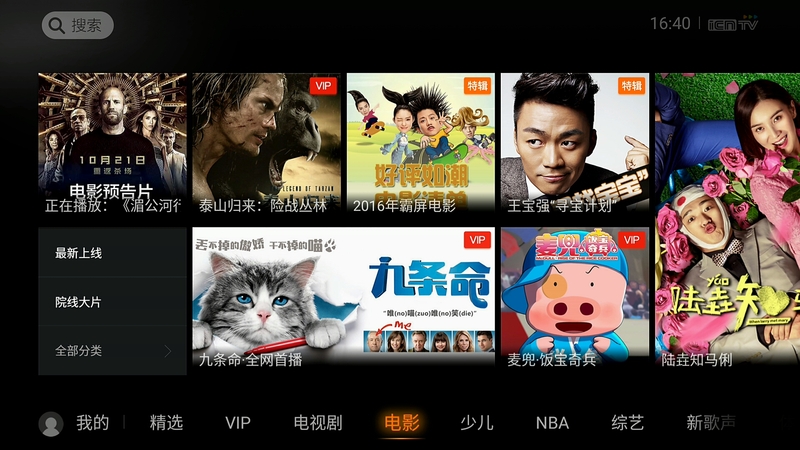

Konka M60U video resources

Video resources

Konka M60U built-in ICNTV broadcast control platform, content has TV dramas, movies, variety shows, etc., while owning Tencent exclusive video content, so that users like what to see. The video resources provided by the ICNTV broadcast control platform are quite rich, including video resources of movies, TV shows, variety shows, etc., and even live broadcast of sports events, suitable for different user groups.

Konka M60U video resources

Konka M60U video playback

The playback interface provided by ICNTV is also relatively simple, and the resources are numerous and new. However, some of the video resources need to be charged. The payment method using monthly subscription or annual subscription is actually quite cost-effective.

Konka M60U full network search

In addition, Konka not only adopts the ICNTV platform, but users can also search for more video resources through the entire network. The searched resources can be played directly on the Konka M60U and can be used as a supplement to the resources outside the ICNTV platform.

Konka M60U Education Resources

Smart TV can not only be used to see video, Konka M60U can also become a teaching platform, Konka M60U has easy to learn teaching platform, provides a very rich educational resources, covering different ages of students, and even provide vocational education resources. The Konka M60U is not only an entertainment platform but also an education platform.

Konka M60U is easy to learn

The Konka M60U's exclusive easy-to-learn education platform includes elite teachers from Huanggang, selected courses at Haidian, exclusive resources for Tsinghua Education, and a TV class private classroom. The content can be customized to develop a curriculum, customized according to the needs of different children, the current stage has basically covered the needs of children in different ages in different regions.

Konka M60U Education Resources

Educational Resources

The commonly used primary and secondary school education resources can be found in the Yikang M60u's Yi Xue, and there are corresponding teaching contents for different disciplines without grades. Most of these teaching contents are free.

Educational resources installation

Other educational resources

In addition, users can also download the teaching resources of other teaching platforms in the Yi Xue, and learn according to their favorite contents. There are also some teaching resources that need to be paid. Users can choose according to their own needs.

Konka M60U test summary

Konka M60U

Outstanding design:

As a 60-inch smart TV, the Konka M60U has an outstanding design. Its exterior design uses an ultra-narrow frame design, plus a champagne color scheme, giving the Konka M60U a very high value. The three-stage design dilutes the traditional â€œboxâ€ feel of TV and uses a very metallic base that makes the entire TV look more stylish than the atmosphere.

Original IPS screen:

In terms of hardware configuration, the Konka M60U uses LG's original IPS screen, plus 4K resolution does provide a very good definition, and the screen has a very good performance in terms of brightness, color gamut, and color.

Excellent color performance:

The Konka M60U adopts 4K HDR Plus and 4K true color wheel technology, which greatly enhances the color performance of TVs. Both static pictures and 4K videos can provide high definition and excellent color performance. In addition Konka M60U has Konka exclusive full MEMC technology to ensure that when playing video does not appear tailing phenomenon, improve video quality.

Rich video and teaching resources

Konka M60U based on ICNTV platform provides a very rich video resources, users can also search through the entire network to search for more abundant video resources. In addition, the education resources on the Konka M60U are also a major feature, covering the teaching resources of primary and secondary schools, vocational education, fitness education, etc., to build the Konka M60U into a teaching platform.
